生物質炭復合團塊在高爐中的反應行為

Reaction behavior of the biochar composite briquette in the blast furnace

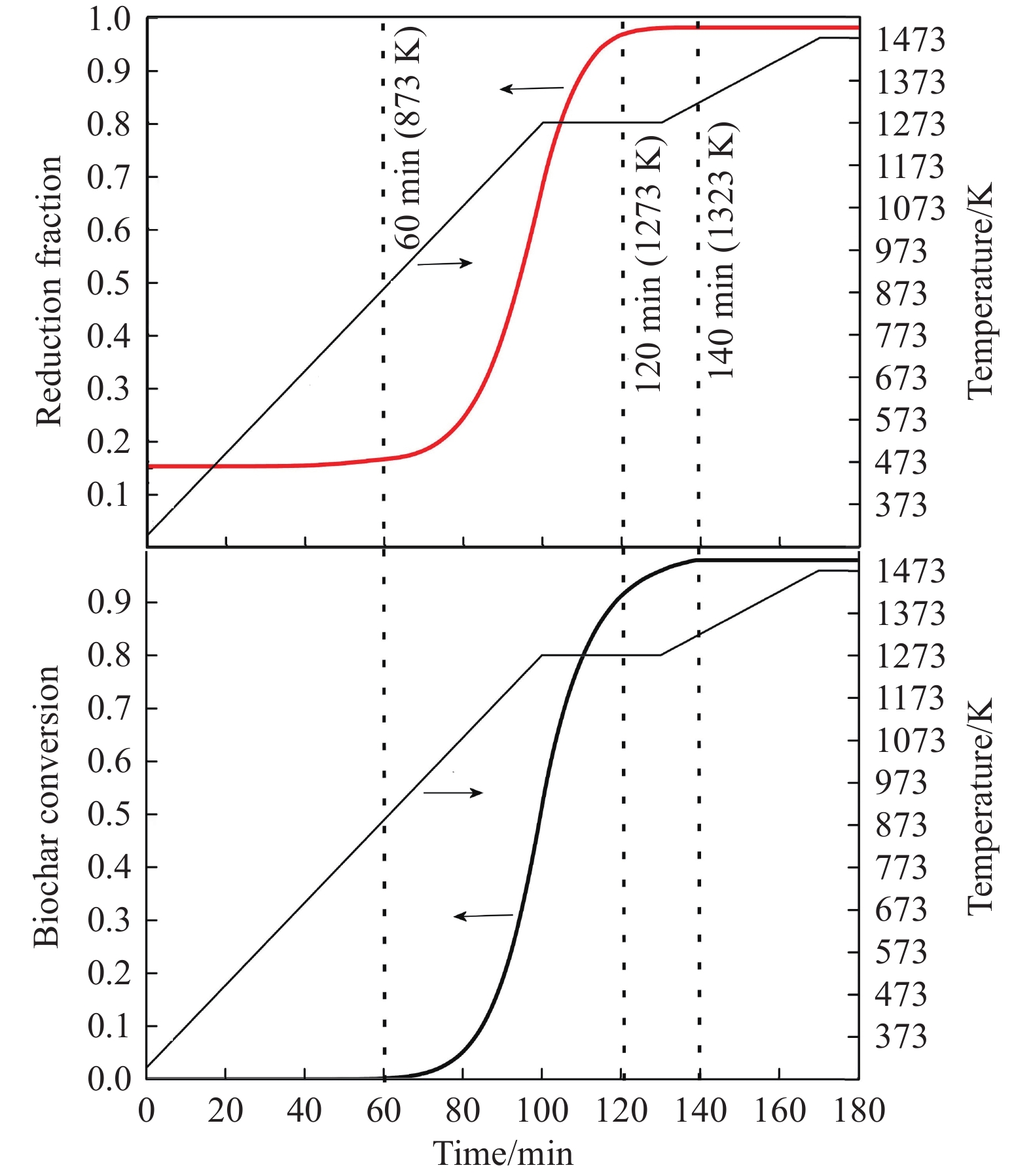

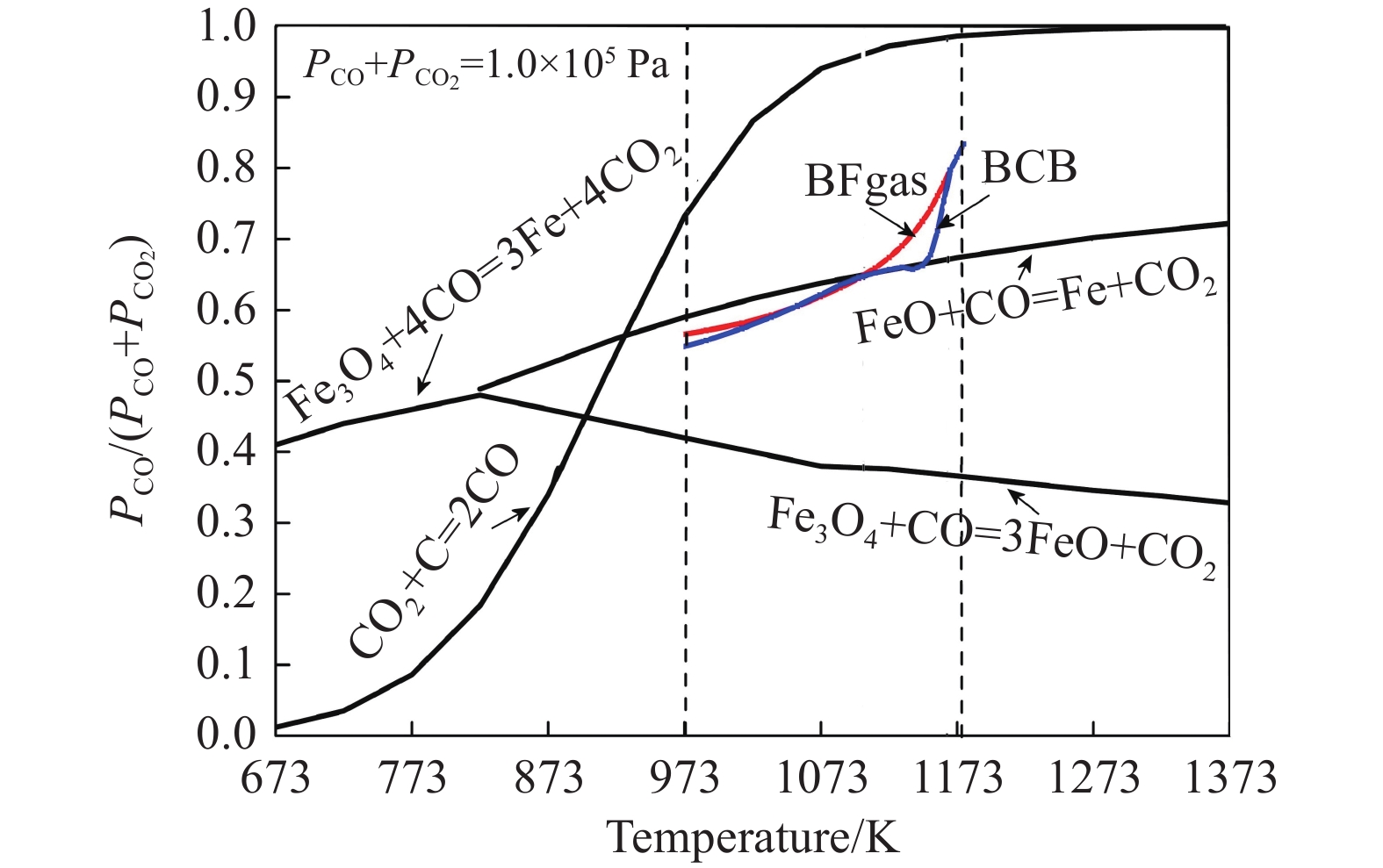

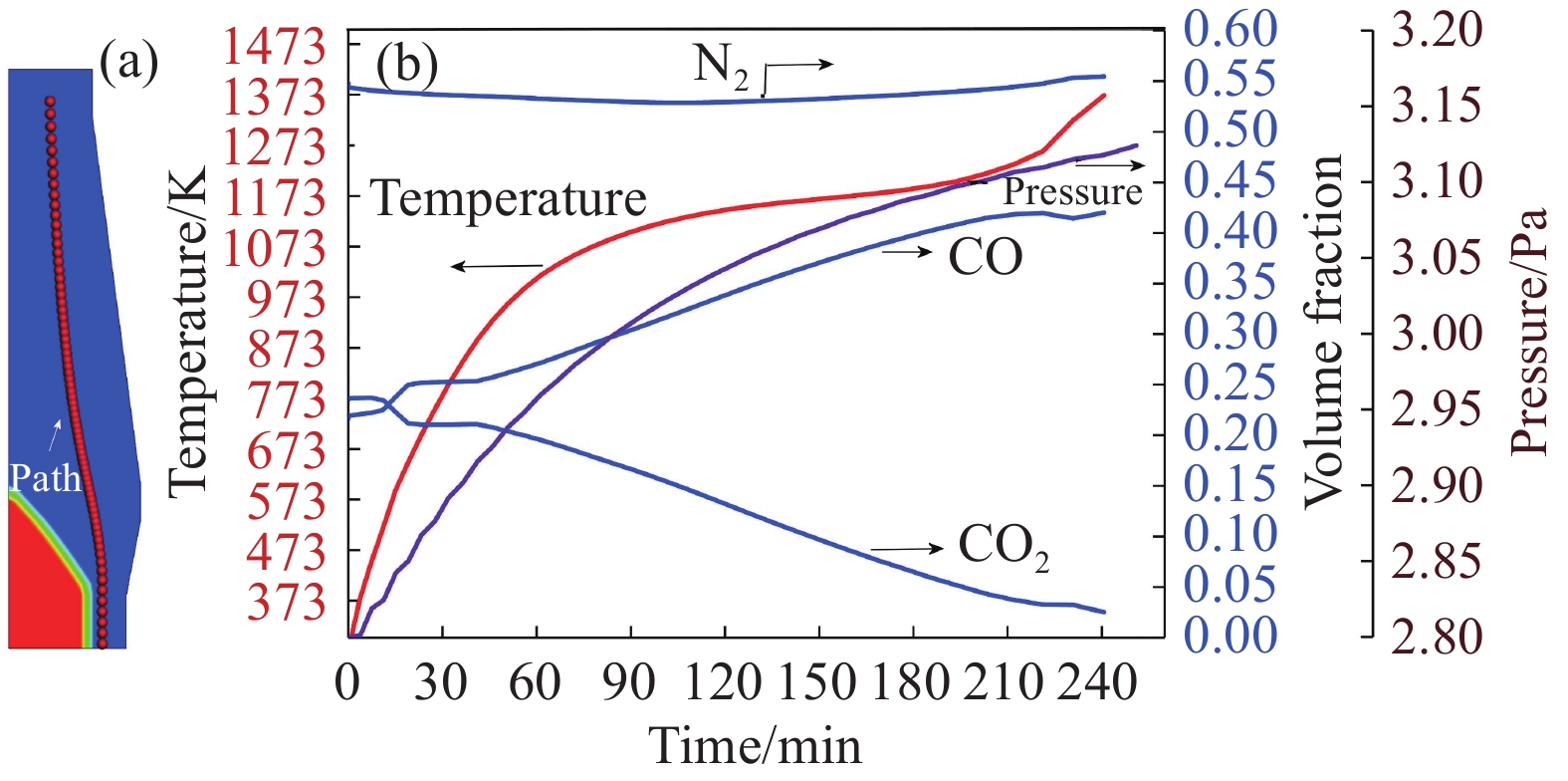

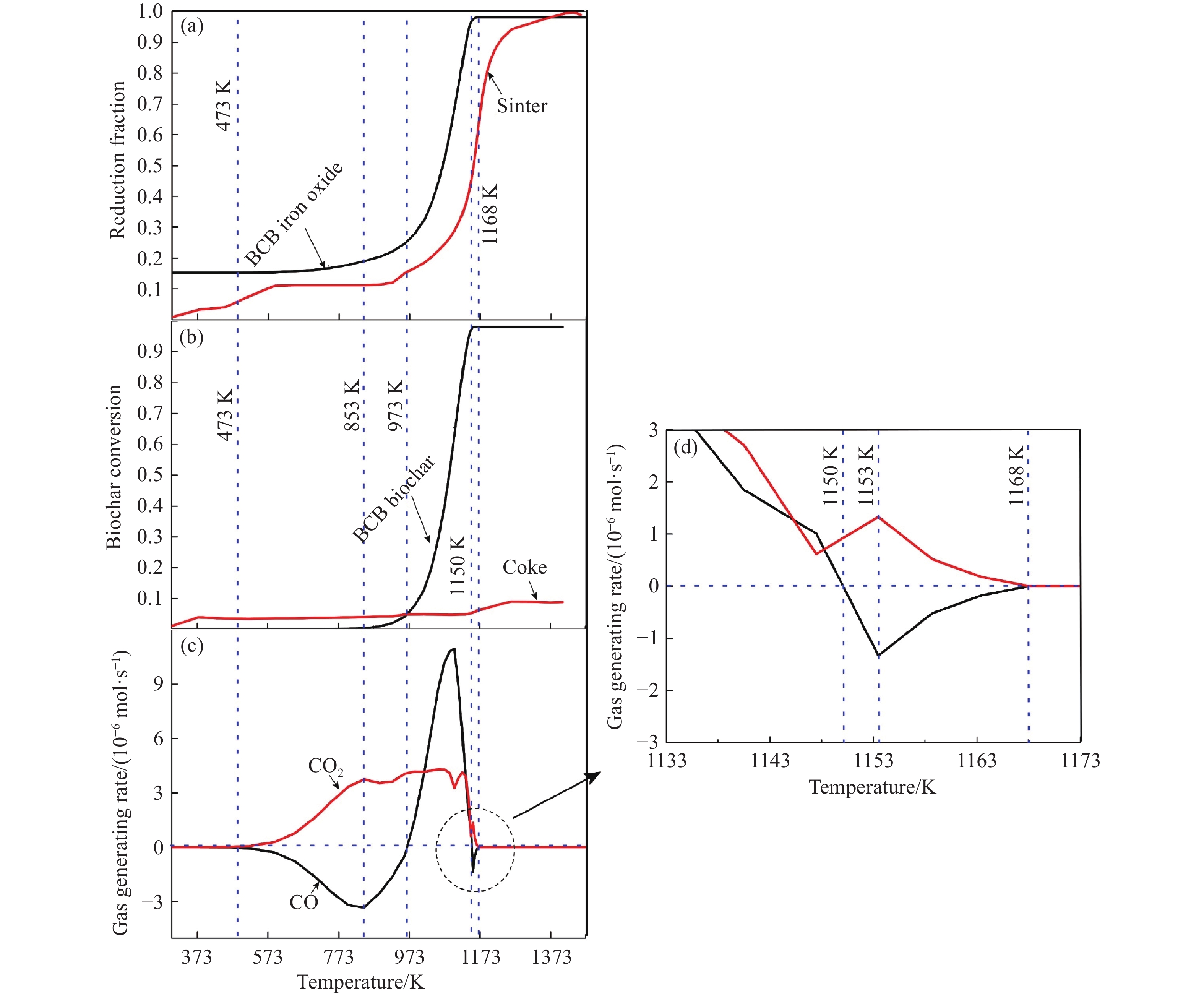

  • 摘要: 研究了生物質復合團塊在高爐中的反應行為,該復合團塊主要成分(質量分數)為:11.1% C、72.7% Fe3O4、11.25% FeO、0.77% Fe和4.67% 脈石。并對高爐環境下復合團塊的反應行為進行了建模,通過高爐氣氛下的等溫動力學實驗確定模型參數并進行了模型驗證。進一步,結合模型模擬,模擬高爐環境的實驗和團塊微觀結構分析,對模擬高爐條件下和實際高爐條件下團塊的反應行為進行了分析。研究結果表明:模擬高爐條件下,在60 min (973 K) 到120 min (1273 K) 期間, 團塊的微觀結構發生明顯變化,其微觀結構由渣相網絡結構向金屬鐵網絡結構轉變。在實際高爐中,復合團塊的反應進程主要包括三個階段:團塊的高爐煤氣還原(473~853 K)、團塊的高爐煤氣還原和部分自還原(853~953 K)以及團塊的完全自還原(953~1150 K)。在團塊自還原參與階段,與燒結礦相比,團塊內氧化鐵還原速率更快;與焦炭相比,團塊內生物質炭氣化速率更高。同時,在此階段,團塊有提高高爐煤氣利用率和降低高爐熱儲備區溫度的作用。

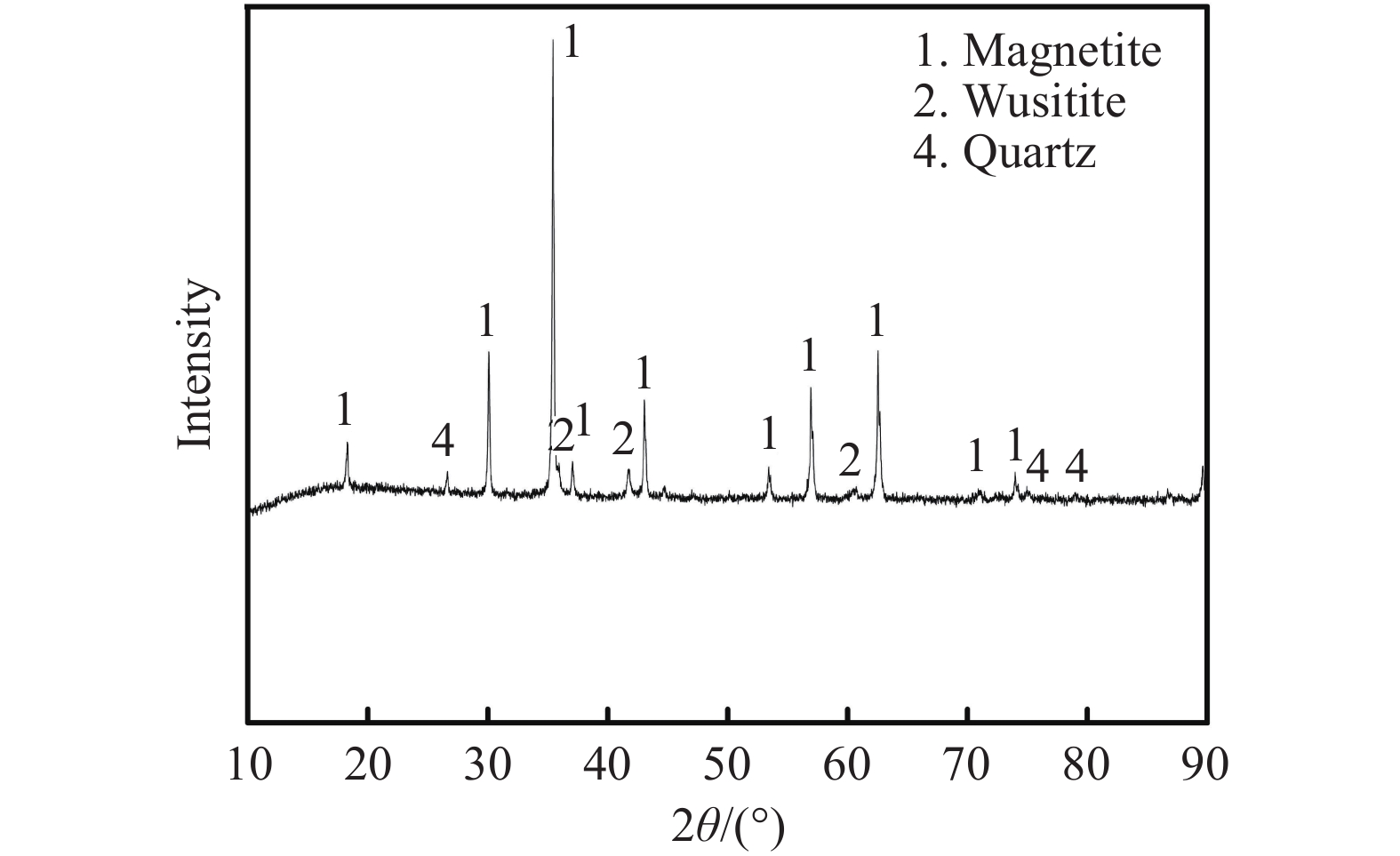

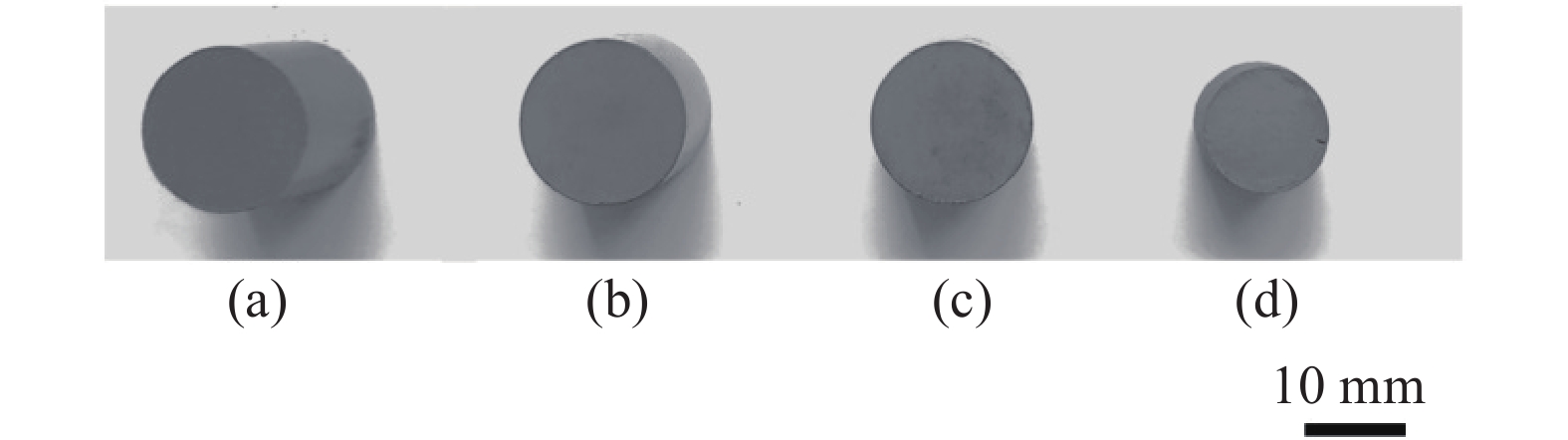

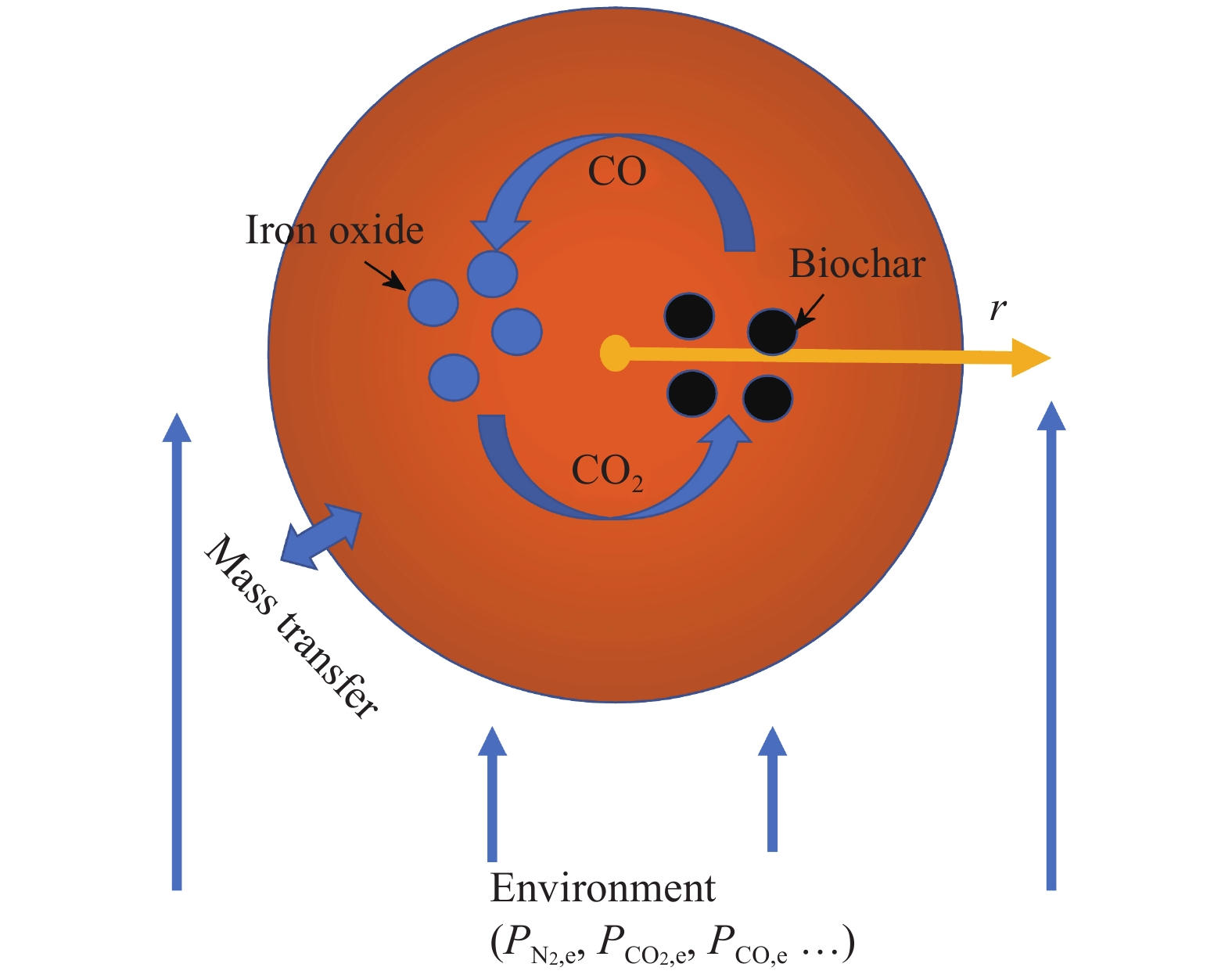

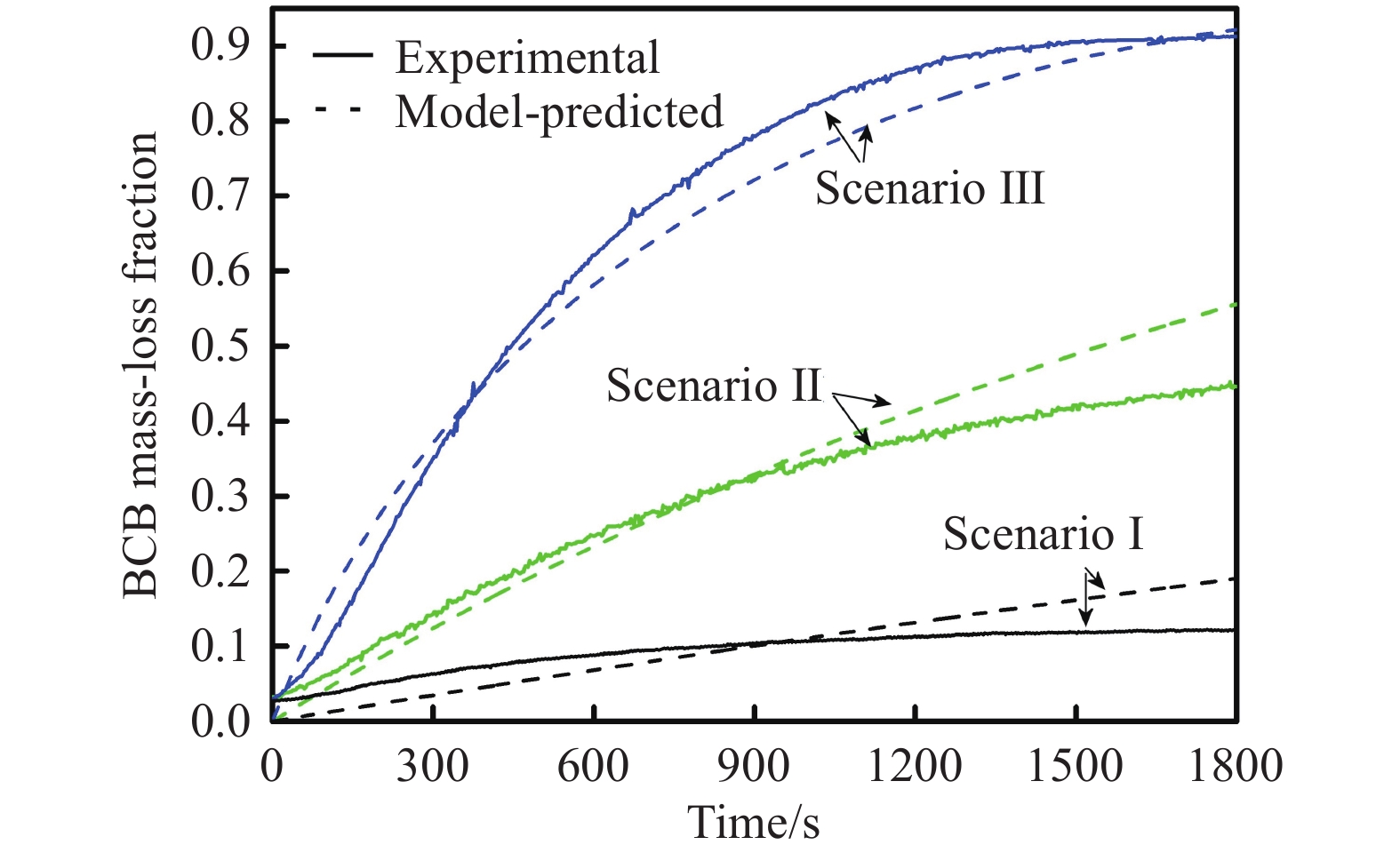

    Abstract: Blast furnace (BF) ironmaking is considered to be the most popular technology to meet the increasing steel demand worldwide, but it is responsible for the most CO2 emissions in the blast furnace-basic oxygen furnace production process. The utilization of biomass/biochar in BF ironmaking is an effective countermeasure to reduce its CO2 emission, as biomass/biochar is a renewable carbon source and environment neutron. Charging the biochar composite briquette (BCB) is a convenient method to introduce biomass/biochar into BF. The present research investigates the reaction behavior of the BCB in the BF. The BCB for the BF was prepared using cold briquetting followed by low-temperature heat treatment. The BCB was composed of 11.1% carbon, 72.7% magnetite, 11.25% wustite, 0.77% metallic iron, and 4.67% gangue (all in mass fraction). The BCB reaction model in the BF was developed considering the step-wise gaseous reduction of iron-oxide particles, CO2 gasification of biochar particles, internal gas diffusion in the BCB, and mass transfer between the BCB and the environment. Isothermal BCB reaction tests were conducted for model validation. Using the model, the changes of the BCB iron-oxide reduction fraction and biochar conversion rate and the BCB microstructure evolution under simulated BF conditions were analyzed. The model was also applied to predict the change of the BCB iron-oxide reduction fraction, change of the BCB biochar conversion, change of the BCB CO generating rate, and change of the BCB CO2 generation rate along a solid flowing path near the mid-radius in an actual BF. Results showed that under simulated BF conditions, the BCB underwent fast self-reduction and structure changes (forming low-melting compounds and transforming from the slag matrix to the iron network) from 60 min (973 K) to 120 min (1273 K). In an actual BF, the BCB reaction route is mainly divided into three stages: (1) reduction by BF gas (473–853 K), (2) reduction by the BF gas and partial self-reduction (853–953 K), and (3) full self-reduction (953–1150 K). In the stages involving BCB self-reduction, the iron oxide in the BCB reduces faster than the sinter, and the biochar gasifies faster than the coke. Moreover, in these stages, the BCB has the functions of increasing the BF gas utilization efficiency and lowering the temperature level of the BF thermal reserve zone.



/
